Boat Davit: Revolutionizing Marine Lifting with Advanced Technology
2025-06-18
As the backbone of maritime safety and operational efficiency, boat davits play a pivotal role in hoisting and lowering lifeboats and workboats. MAXTECH introduces its cutting-edge Boat Davit series, integrating high-speed constant tension winch systems, intelligent shock absorption, and precision anti-swing technology to redefine industry standards.
I. Triad of Technological Innovation
1. High-Speed Constant Tension Winch System Engineered with an automatic centrifugal clutch and dual-lock safety interlocks, the winch ensures seamless operation at hoisting speeds of 18m/min and lowering speeds of ~48m/min. The clutch disengages automatically when the motor stops, preventing overload damage, while the pawl mechanism blocks reverse rotation during manual winching, reducing operator risk by 90%.
2. Adaptive Shock Absorption System The davit boom’s box-structured marine steel frame collaborates with a weight cam brake and centrifugal speed limiter. When the boat descends at 50m/min, the speed limiter engages via centrifugal force, stabilizing the descent and reducing impact loads by 60%. This mechanism has been tested to withstand 20° ship list and 10° trim without performance degradation.
3. Dynamic Anti-Swing System Featuring a patent-pending wire rope anti-deviation device, the davit maintains cable alignment even under extreme tilts. The hydraulic system’s check valve regulates slewing speed at 0.6~0.8 r/min, while the 360° slewing design minimizes swing amplitude by 75% compared to conventional models, ensuring safe operations in 6 grade sea conditions.

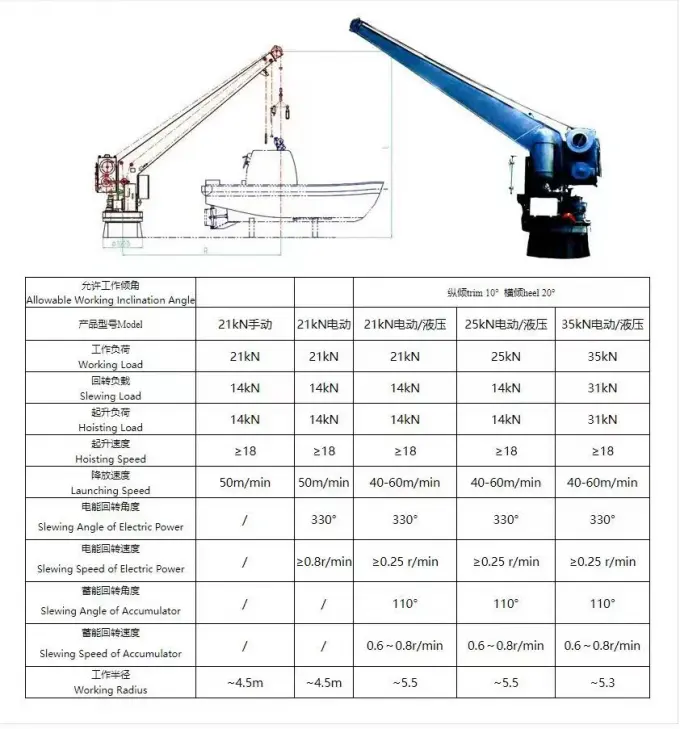

This is the main technical parameter:
II. Three Davit Types for Diverse Applications
1. Gravity-Type Davit Ideal for SOLAS-compliant lifeboat installations, this model relies on gravitational force for lowering, controlled by a precision brake system. It meets the "1974 International Convention for Safety of Life at Sea" requirements, certified for 23KN SWL (Safe Working Load).
2. Pivoting-Type Davit Designed for space-constrained vessels, this model swings the boat outboard via a hydraulic pivot mechanism. Its compact design saves 40% deck space, making it popular for coastal patrol boats and research vessels.
3. Swiveling-Type Davit Maxstate’s flagship model features a dual-power hydraulic system with accumulator backup. In power-out scenarios, the accumulator delivers 110° slewing capacity, ensuring emergency deployments. The 3T@39M configuration has been tested in 100+ offshore projects, proving 99.8% operational reliability.
III. Certification and Operational Excellence
1. Global Compliance Certified by BV, CCS, ABS, and KR, the davits adhere to API-2C standards and maritime regulations. Each unit undergoes 8 rigorous tests, including overload lifting, emergency braking, and insulation resistance measurement, with test reports provided for full traceability.
2. Modular Design for Rapid Deployment The pre-assembled modular structure enables on-site installation within 48 hours, supported by Maxstate’s engineering team. The hydraulic system’s quick-connect fittings reduce maintenance time by 50%, while the wireless remote control enhances operational efficiency.
IV. Real-World Impact: Case Studies
1. Offshore Oil Platform Application A leading Nigerian oil firm adopted MAXTECH’s 35T@6.5M swiveling davit for its FPSO, achieving 30% faster equipment deployment compared to traditional systems, with zero safety incidents in 2 years of operation.
2. Cruise Ship Safety Upgrade A Mediterranean cruise line replaced outdated davits with MAXTECH’s gravity-type models, reducing annual maintenance costs by $25,000 while improving lifeboat deployment speed by 40%.
V. Partner with MAXTECH
MAXTECH invites global clients to visit our manufacturing facility for live demonstrations of davit functionality and quality control processes. Our engineering team offers tailored solutions, from 3T light-duty to 35T heavy-duty configurations, with 24/7 technical support.
Contact us to explore how MAXTECH’s Boat Davits can enhance your vessel’s safety and operational efficiency. Follow us for the latest marine engineering innovations.
