How to Choose the Right Slewing Crane for Your Project?

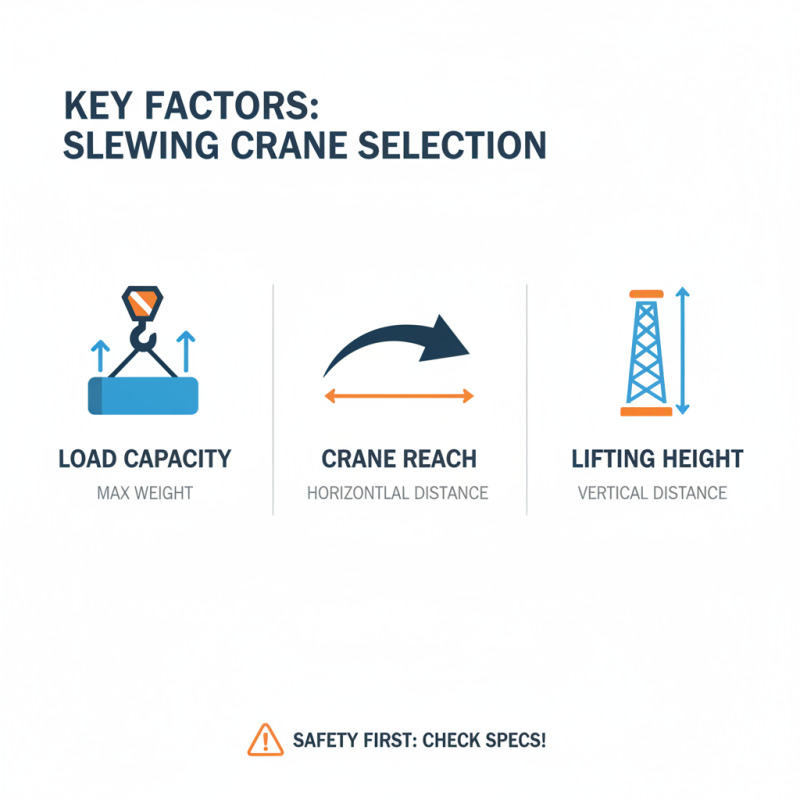

Choosing the right Slewing Crane can determine whether a project runs smoothly or struggles with delays, rework, and unsafe lifting decisions. The best choice depends on more than rated capacity. Load weight, working radius, lifting height, duty cycle, foundation strength, and available power all matter. A 10-ton load at five metres demands a different solution from the same load at fifteen metres.

Real project conditions often reveal the difficult details. A crane may fit the load chart but fail to suit a narrow dock, uneven ground, or restricted overhead clearance. Wind exposure can also change the lifting plan, especially on open construction sites. Review the heaviest load, not only the average load. Check the load’s centre of gravity and lifting points. Small errors here can create serious consequences.

Reliable selection combines field experience with verified technical information. Compare manufacturer load charts, installation requirements, control systems, maintenance access, and emergency features. Ask a qualified lifting engineer to review the proposed configuration. Local workplace rules and applicable standards must guide the final decision. No method is flawless. Project assumptions can be incomplete, and early estimates may change. That is why a practical review should include site measurements, trial planning, and clear documentation. The right Slewing Crane is not simply the strongest option. It is the machine that delivers suitable reach, controlled movement, dependable operation, and safe performance throughout the project.

How to Choose the Right Slewing Crane for Your Project?

Define Rated Capacity (t) and Load Moment (kN·m) Requirements

How to Choose the Right Slewing Crane for Your Project?

Define Rated Capacity (t) and Load Moment (kN·m) Requirements

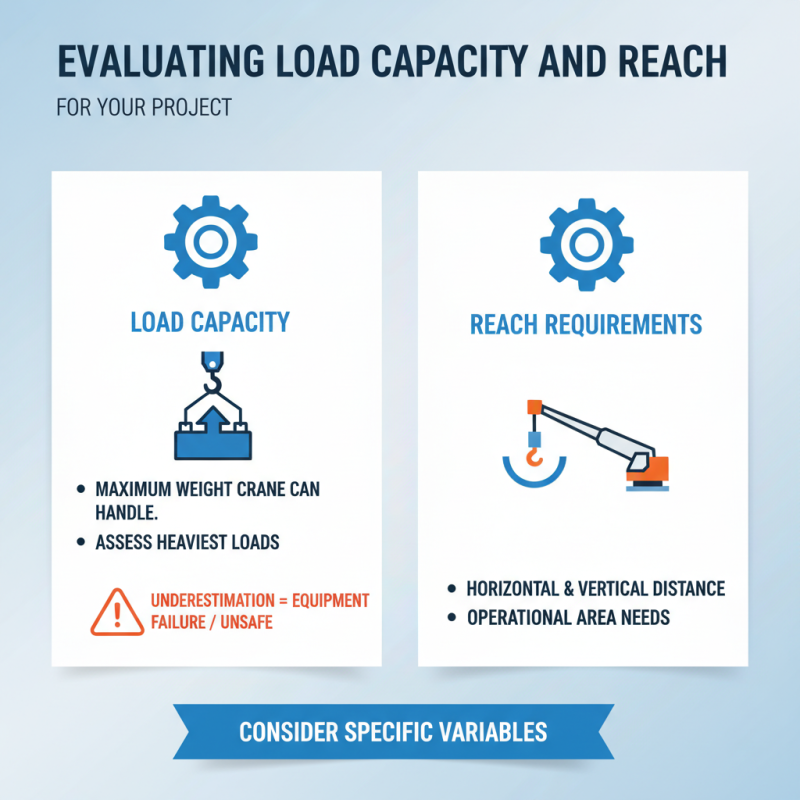

Choosing a slewing crane starts with two figures: rated capacity and load moment. Rated capacity shows the maximum permitted load under specific operating conditions. A 10-ton crane may not lift 10 tons at every radius. Its capacity usually decreases as the boom extends. Always read the manufacturer’s load chart, not only the headline number.

Load moment equals lifted load multiplied by working radius. For example, lifting 4 tons at a 12-meter radius creates approximately 48 tonne-metres of moment. Convert units carefully when comparing this value with kN·m specifications. A small calculation error can affect the entire selection. Include the hook block, slings, spreader beam, and other lifting accessories in the total load.

Measure the farthest lifting point on your site. Then check the required height, slew range, ground condition, and wind exposure. Experienced lift planners also consider acceleration, suspended-load movement, and uneven loading. These details can increase actual forces beyond the static weight. Leave a practical safety margin, but do not guess its size. A qualified engineer should verify the final lift plan and confirm the crane’s configuration. I have seen projects rely on nominal capacity, only to discover that radius reduced usable capacity sharply. Recheck the chart with the crane fully configured.

Match Working Radius (m), Lift Height (m), and Slewing Speed (rpm)

How to Choose the Right Slewing Crane for Your Project?

Choosing the right slewing crane starts with three measurements: working radius, lift height, and slewing speed. Working radius is the horizontal distance from the crane’s rotation center to the load. Measure the farthest pickup and placement points, not just the average distance. A ten-meter radius can demand much more capacity than a six-meter radius. Check the load chart at that exact radius. Capacity often decreases as the radius grows. Site obstacles matter too. Walls, columns, and stored materials may require a wider working envelope.

Lift height should include the final load elevation, sling length, hook block, and clearance above nearby structures. If the crane places steel over a roof edge, calculate the hook path, not only the roof height. Slewing speed affects positioning quality. Higher rpm may save time in open areas, but it can increase load swing. For tight sites, slower rotation is often more practical. Consider visibility, wind exposure, and load shape. A broad panel behaves differently from a compact machine part.

Tips: Record the radius and height for the heaviest lift. Test the worst position. Compare the required rpm with the rated range and control system. Leave margin for wind, uneven ground, and measurement errors. I once treated a clearance figure as exact. The real obstruction was several centimeters closer. That small mistake changed the lifting plan. Recheck drawings on site. Numbers deserve skepticism.

Select Duty Class Using ISO 4301 and EN 13001 Service Criteria

How to Choose the Right Slewing Crane for Your Project?

Select Duty Class Using ISO 4301 and EN 13001 Service Criteria

A slewing crane’s duty class should reflect real work, not only rated capacity. ISO 4301-1:2016 evaluates crane utilization through working cycles and load spectrum. Its utilization classes run from U0 to U9, while load categories range from Q1 to Q4. Together, they support an overall classification from A1 to A8.

Count the work carefully. Suppose the crane completes eight lifts per hour, operates 16 hours daily, and works 250 days annually. Over ten years, that equals about 320,000 cycles. However, one heavy lift does not equal one light lift in fatigue impact. Record typical loads, hook heights, slewing angles, starts, stops, and idle periods. Field logs are valuable.

EN 13001-1:2015 adds another layer. It considers limit states, dynamic effects, fatigue, and intended service conditions. A crane handling 70% of its rated load repeatedly may require a higher duty class than one handling 20% occasionally. This difference is often missed.

Do not guess here.

During site assessments, I have found that future production changes are poorly documented. That is a weakness worth admitting. Add realistic growth, environmental exposure, and maintenance access to the design brief. Then ask the manufacturer or a qualified engineer to verify the selected ISO group against EN 13001 calculations and the latest locally adopted requirements.

Verify Wind Loads (m/s), Foundation Loads, and Stability to EN 1991-1-4

How to Choose the Right Slewing Crane for Your Project?

Wind verification should begin with the actual site, not a generic crane table. Record the basic wind velocity, terrain category, altitude, and nearby structures. Under EN 1991-1-4, these factors influence the design wind pressure and exposed surface area. Convert the specified wind speed in m/s into realistic load cases. Include both operating and out-of-service conditions.

A practical check uses the crane’s maximum radius, boom position, suspended load, and projected surfaces. Ask for overturning moments, horizontal reactions, vertical reactions, and anchor forces from the crane designer. Then compare them with the foundation’s bearing capacity, sliding resistance, uplift resistance, and reinforcement details. Soil reports matter here. Concrete strength alone does not prove stability.

Small details can decide the result.

One common mistake is checking the foundation only under lifting loads. A parked crane may experience greater wind effects, especially with an elevated boom or large attachment. Review gust factors, shielding assumptions, and the relevant National Annex. Do not hide uncertainty behind conservative guesses; document it and request clarification. I have seen early calculations overlook temporary erection stages, which later required costly redesign. Confirm the crane remains stable during assembly, operation, maintenance, and severe wind shutdown conditions. A competent structural engineer should independently review the load path from boom to slewing unit, anchors, foundation, and ground.

Compare ASME B30.4 Compliance, Maintenance Hours, and Total Cost

How to Choose the Right Slewing Crane for Your Project?

ASME B30.4 compliance should be checked before comparing lifting capacity. The code covers specific portal and pedestal crane applications, so confirm your crane’s scope with a qualified engineer. A compliance label alone proves little. Review load charts, emergency stops, limit devices, inspection records, and operator procedures. Ask for documented evidence. That matters.

Maintenance Hours Maintenance hours often reveal the crane’s real cost. During a site review, record lubrication points, access height, brake adjustments, and inspection time. A crane needing eight service hours monthly may cost more than one requiring twelve hours yearly, even with a lower purchase price. Keep spare-part availability in the calculation. Records tell the truth.

Total Cost Considerations Total cost includes delivery, foundations, installation, commissioning, training, electricity, inspections, repairs, and downtime. For example, a coastal site may need stronger corrosion protection and more frequent checks. A compact crane can reduce foundation work, but its restricted outreach may slow production. My early estimates often focused too heavily on the purchase price. That was a mistake. Recheck assumptions using actual lift cycles, weather exposure, and local labor rates. Leave room for unexpected repairs. No estimate is perfect.
